REVER V1 · V2 · V3

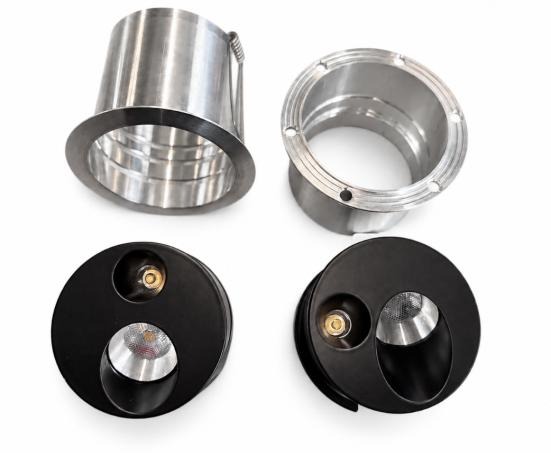

Recessed double-spot luminaire
Description
REVER was created to turn light into an architectural element, able to shape space with elegance and precision. Its double light spot brings together two different effects in a single element with a minimal design.

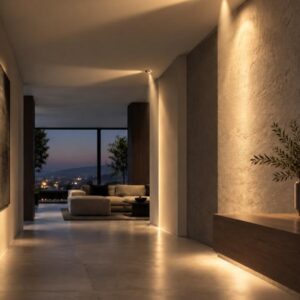

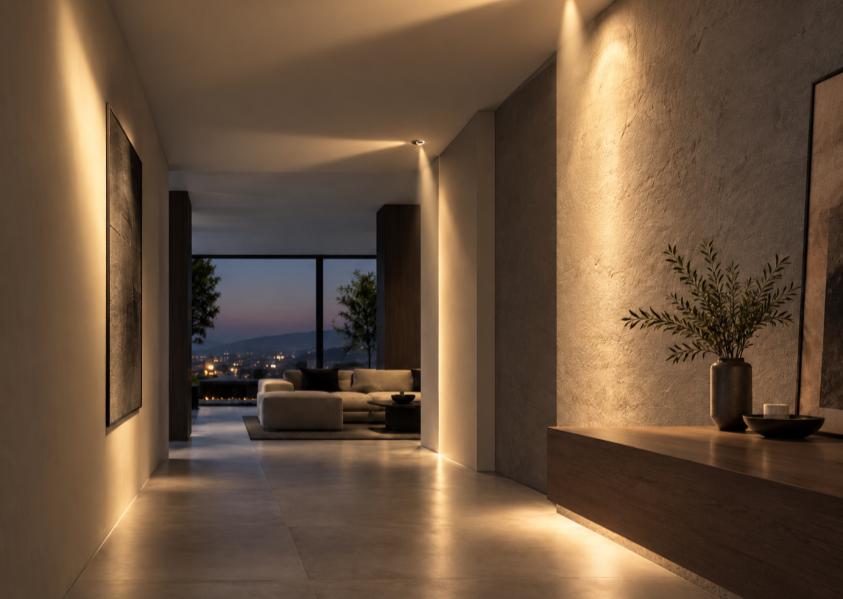

A grazing light flows along the surface, enhancing its material, texture and depth. The second, angled beam opens into the space, creating a bolder, more scenographic light accent. Two different effects, designed to interact with each other and create striking contrasts of light and shadow.
The two spots can be switched on at the same time, creating a complete and enveloping lighting composition. Or they can be used separately, choosing the atmosphere best suited to every moment. Light thus becomes dynamic, able to change the perception of surfaces and of the room.
REVER combines functional lighting and decorative light in an extremely versatile solution. A small architectural element able to create multiple scenarios and emotions through light.
Key features
- Double spotA grazing light and an angled beam
- Two circuitsThe two spots switch on together or separately
- Three versionsV1, V2 and V3: different angles of the light outlets
- 21 finishesRAL, anodised and 24K gold colours
Technical data
- Type
- Recessed double-spot luminaire
- Installation
- Flush recessed in plasterboard, with plaster kit · Recessed in suspended ceiling, with springs
- Cut-out
- Ø 65 mm
- Diameter
- 65 mm
- Height
- 50 mm
- Protection rating
- IPX4
- Colour temperature
- 2700K – 3000K – 4000K
- Optic
- D 10 – 25 – 40 · N 25 – 40 – 60 degrees
- Maximum current
- D 700 · N 350 mA
- Colour rendering
- CRI >95
- Light source
- Two integrated LEDs, switchable together or separately
- Light direction
- One grazing spot and one angled spot
- Application
- Indoor
- Power supply
- Two constant-current drivers: 700 mA and 350 mA
- Material
- Aluminium
- Insulation class
- III
- Markings
- CE · RoHS · WEEE
- Origin
- Made in Italy
- Warranty
- 1 year

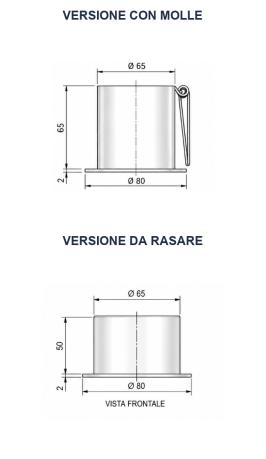

Section and dimensions
Open the drawing ↗Optical and electrical data
| Unit | Spot LED D | Spot LED N | |
|---|---|---|---|
| Forward voltage | V | 5,7 | 3,0 |
| Maximum power | W | 4 | 1 |
| Luminous flux | lm | 620 | 150 |
| Efficacy | lm/W | 155 | 143 |
Ordering codes
| Code | CCT | Optic | Finish | Current |
|---|---|---|---|---|
| 30xxxx | 2700K – 3000K – 4000K | D 10·25·40 / N 25·40·60 | All finishes listed | 700 · 350 mA |
Finishes
- White
- RAL 9001 · 9003 · 9010 · 9016 matt – RAL 9010 · 9016 wrinkle
- Black
- RAL 9005 matt · wrinkle – anodised optic
- Anthracite
- Anthracite
- Bronze
- Painted bronze
- Champagne
- Champagne F · S
- Chrome
- Electroplated chrome
- Polished
- Polished
- Gold
- 24K gold · electroplated · satin
- Copper
- Copper
- Special anodised
- On request
- Custom RAL
- On request
Documents and downloads
Indicative data, not binding. Subject to change without notice.
